BDTH01-02

Dew Point Meter

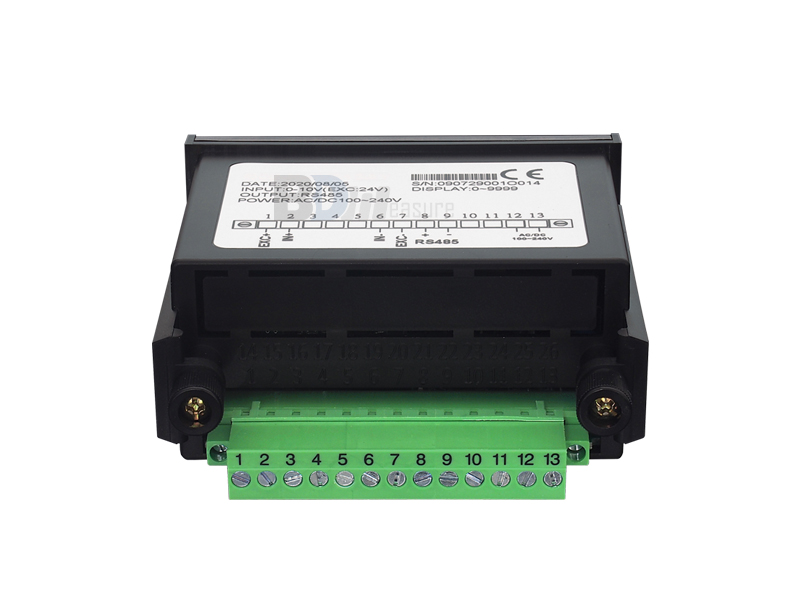

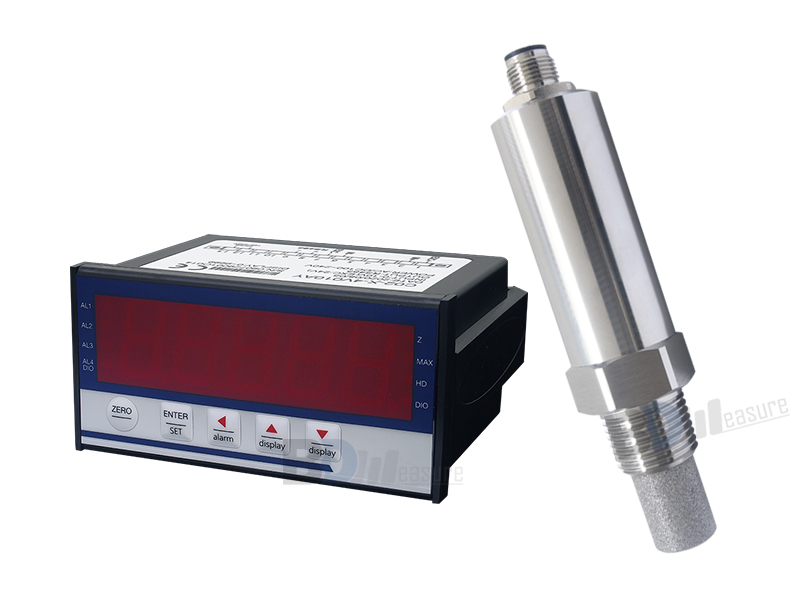

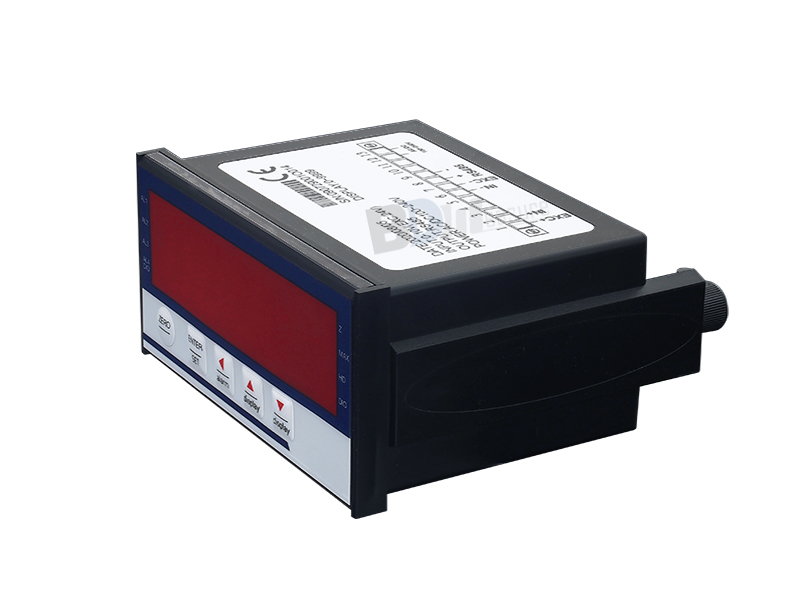

This dew point meter, equipped with up to two relays, can not only monitor the instant dew point, but also convert the analog signal from dew point sensor into 4-20mA that can be transmitted to other devices. Additionally, With RS485 Modbus RTU interface, the dew point meter can connect to the PLC or HMI conveniently. The panel cutout dimension is a standard size that reduces time and complexity on installation.

Inquiry

Name

Country

Company

E-mail

Tel

Fax

Message

Verification

Information
Dimension
Package
Download

To control the dew point in industrial processes, people may mount the hygrometer or dew point transmitter to maintain an optimal humidity condition. Dew point can play a critical role in control systems. For instance, compressed air systems often require to maintain the moisture in compressed air pipes. To monitor the dew point, you can connect our dew point sensor to this digital panel meter, and use its alarm function to set up your high and low alarm limits.

Technical Specification

Accuracy	For DC, potentiometer, resistance, PT100 and load cell: ±0.1% FS ±1 digit
Accuracy	For AC: ±0.2% FS ±1 digit
Display	0.8" high, 4 digits, red LED
Sampling Rate	16 times/sec
Display Range	-9999 to 9999
Non-volatile Memory	The internal EEPROM has an endurance of 100,000 write/erase cycles
Alarm Operation	Direction (High or Low), Time delay (0 to 9999 sec), Hysteresis (0 to 9999)
Relay Output	SPDT x 1 / SPST x 2
Contact Rating	5A @ 250VAC resistive , 7A @ 30VDC resistive
Analog Output	4...20mA
Analog Output Resolution	16 bit DAC
Analog Output Response Time	<250ms (0 to 90%)
Digital Output	RS485 Modbus RTU
Baud Rate	19200/9600/4800/2400 bps
Temperature Coefficient	100ppm/°C (0 to 60°C)
Environmental	Operating Temperature: 0 to 60°C Storage Temperature: -10 to 70°C Relative Humidity: 20 to 90% non-condensing
Supply Voltage	100-240VAC / 22-50VDC (others on request)
Power Consumption	<6.5VA
Dimension	96(W)x48(H)x85(D)mm
Weight	Approximately 300g (including packaging)
